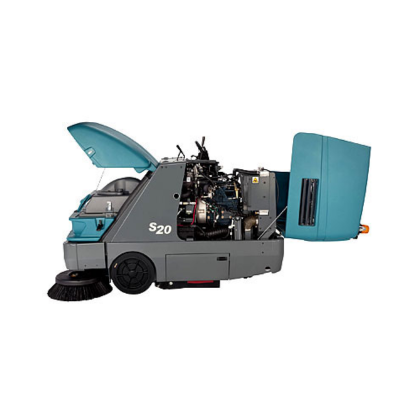

Tennant S20 Ride On Sweeper
Choose a freebie
Special offer until 20th January 2025, choose a free item when you purchase a Gansow Titan.
The Tennant S20 ride on sweeper is a heavy duty and manoeuvrable industrial machine.
The Tennant S20 ride on sweeper sets the standard for compact sweeper performance, safety, and value. With the sweeping power of a mid-size and the manoeuvrability of a compact, the S20 goes where you need it and gets the job done.
Details:
- Dust Control – Provide superior air flow filtration and longer, better dry dust control with the SweepMax® system.
- Innovative...
| Tennant S20 Ride On Sweeper Technical Specifications | ||
| SWEEPING SYSTEM | DIESEL / LPG | BATTERY |
| Cleaning path
Single side brush Dual side brush |
1270 mm 1575 mm |
1270 mm 1575 mm |
| BRUSH DRIVE SYSTEM | ||
| Main brush | ||
| Main brush length (tubular) | 910 mm | 910 mm |
| Main brush lift | Mechanical lever | Mechanical lever |
| Main brush drive | Hydraulic | Belt |
| Side brush diameter (disk) | 580 mm | 580 mm |
| Debris hopper | ||
| Volume capacity (polyethylene) | 310 L | 310 L |
| Weight capacity (polyethylene) | 340 kg | 295 kg |
| Dump height (variable to) | 1525 mm | 1525 mm |
| Dump reach | 355 mm | 355 mm |
| POWER SYSTEM | ||
| Engine – LPG | ||
| Gross Intermittent Power | 23.1 kW (31.0 Hp) @ 3600 rpm | – |
| Tennant Governed Power | 18.3 kW (24.5 Hp) @ 2500 rpm | – |
| Engine – diesel | ||
| Gross Intermittent Power | 14.2 kW (19.0 Hp) @ 2500 rpm | – |
| Tennant Governed Power | 13.8 kW (18.5 Hp) @ 2400 rpm | – |
| Battery options | ||
| Standard capacity (6-6V) | – | 315 Ah |
| Standard capacity, long life (2-18V) | – | 340 Ah |
| High capacity, long life (2-18V) | – | 440 Ah |
| PROPELLING SYSTEM | ||
| Propel speed forward (variable to) | 10 km/h | 8.0 km/h |
| Propel speed reverse (variable to) | 3.0 mph / 4.8 km/h | 3.0 mph / 4.8 km/h |
| Gradeability | ||
| Full hopper | 10 deg / 17.6% | 8 deg / 14.1% |
| Empty hopper | 14 deg / 25.0% | 10 deg / 17.6% |
| DUST CONTROL SYSTEM | ||
| Filter system (triple stage) | ||
| Stage 1 | Perma-filter™ | Perma-filter™ |
| Stage 2 | Cyclonic pre-filter | Cyclonic pre-filter |
| Stage 3 (canister filled) | 7.4 m² | 7.4 m² |
| Filtration level (up to) | 0.5 microns @ 99% efficiency | |
| Vacuum fan | 1.12 kW | 0.75 kW |
| Vacuum fan speed | 6480 rpm | 6100 rpm |
| Vacuum diameter | 230 mm | 230 mm |
| MACHINE SPECIFICATIONS | ||
| Length | 2090 mm | 2090 mm |
| Width | 1230 mm | 1230 mm |
| Height | ||
| With overhead guard | 2085 mm | 2085 mm |
| Without overhead guard | 1260 mm | 1260 mm |
| Weight (net) without battery | – | 1045 kg |
| Weight (net) with standard battery | 1110 kg | 1500 kg |
| Minimum aisle turn | 2420 mm | 2420 mm |
