Tennant M20 Sweeper Scrubber
Choose to Buy, Lease, or Hire to proceed with your enquiry.
Effectively clean in just one pass.

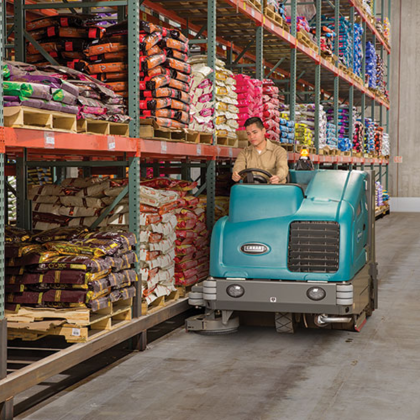

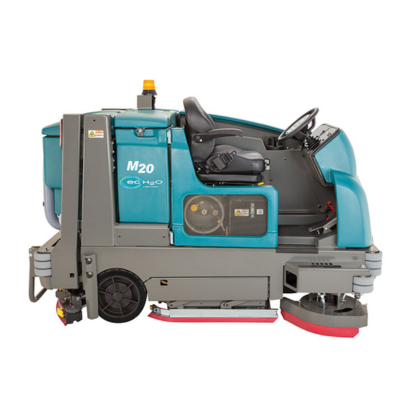

The Tennant M20 sweeper scrubber machine is an innovative, high-performance, integrated sweeper-scrubber floor cleaning machine, designed to deliver customised solutions to meet customer needs.
Details:
- Touch-n-GoTM control module with 1-StepTM start button allows operators quick access to all settings without removing hands from the steering wheel.
- High-capacity, multi-level hydraulic rear hopper (3.9 ft3/110 l | 390 lbs/177 kg) increases cleaning productivity by eliminating the need to manually handle...
| Tennant M20 Sweeper Scrubber Machine Specifications | |
| INTEGRATED CLEANING SYSTEM | |
| Cleaning path | 40 in/1,020 mm |
| With scrubbing side brush | 54 in/1,370 mm |
| With sweeping side brush | 56 in/1,420 mm |
| CYLINDRICAL MAIN BRUSHES | |
| Brush speed | 480 rpm |
| Brush down pressure (up to) | 390 lb/177 kg |
| Brush diameter (2) | 12 in/300 mm |
| SIDE BRUSH | |
| Brush speed | 150 rpm |
| Scrubbing brush diameter | 16 in/410 mm |
| Sweeping brush diameter | 21 in/533 mm |
| TANKS | |
| Solution tank | 56 gal/212 l |
| Solution capacity with ES® | 74 gal/280 l |
| Recovery tank | 73 gal/276 l |
| Demisting chamber | 16 gal/61 l |
| DEBRIS HOPPER | |
| Volume capacity | 3.9 ft3/110 l |
| Weight capacity | 390 lb/177 kg |
| Dump height (variable to) | 60 in/1,520 mm |
| VACUUM FANS | |
| Scrubbing fan speed | 11,000 rpm |
| Scrubbing fan water lift | 35 in/890 mm |
| Sweeping fan speed | 6,500 rpm |
| Sweeping fan airflow | 290 cfm/8.2 m3/min |
| PROPELLING SYSTEM | |
| Propel speed forward (variable to) | 8.0 mph/13 km/h |
| Propel speed reverse (variable to) | 3.0 mph/4.8 km/h |
| ENGINE-LPG (2.0L) | |
| Gross Intermittent Power* | 38.5 kW (51.6 Hp) @2800 rpm |
| Tennant Governed Power | 31.6 kW (42.4 Hp) @2300 rpm |
| ENGINE-DIESEL (1.5L) | |
| Gross Intermittent Power* | 18.5 kW (24.8 Hp) @2300 rpm |
| Tennant Governed Power | 18.5 kW (24.8 Hp) @2300 rpm |
| GRADEABILITY | |
| Transport at gross weight | 10.0°/18% |
| Working (cleaning) | 8.0°/14% |
| Ground clearance (transport) | 3 in/80 mm |
| DUST CONTROL SYSTEM | |
| Filter system | Synthetic fibre panel |
| Filter area | 78 ft2/7.3 m2 |
| Dust filtration (to) | 3 microns @ 99% efficiency |
| Shaker mechanism (automatic) | Timed, beater bar |
| MACHINE SPECIFICATIONS | |
| Length | 95 in/2,410 mm |
| Frame width | 50 in/1,270 mm |
| Rear squeegee | 51 in/1,300 mm |
| With side brush | 58 in/1,473 mm |
| Height | 58 in/1,473 mm |
| With overhead guard | 83.5 in/2,120 mm |
| Weight (empty) | 3,300 lb/1,497 kg |
| Minimum aisle turn | 110 in/2,790 mm |
